ULN2803A

The ULN2803A is a high-voltage, high-current driver IC designed to interface between low-power digital signals and higher-power loads such as motors, relays, and lamps. It consists of eight Darlington transistor pairs, allowing it to sink up to 500 mA per channel and withstand voltages up to 50V. This makes it ideal for driving inductive loads and provides protection against back EMF, which is essential for maintaining circuit integrity.
The IC features a common ground for all outputs, simplifying connections in multi-channel applications. Each input can be controlled independently, enabling complex control schemes. Its built-in clamping diodes protect against voltage spikes, making it suitable for interfacing with microcontrollers and other low-voltage logic devices.
The ULN2803A is widely used in automation, robotics, and various control applications, owing to its versatility and ease of use. Overall, it serves as an effective solution for controlling high-power devices while ensuring safe and reliable operation.

The ULN2803A is a high-voltage, high-current Darlington transistor array. Here are its key features:
1. Output Configuration: It contains eight Darlington pairs, allowing for multiple outputs to drive loads like relays, motors, and LEDs.
2. High Voltage and Current Handling: It supports output voltages up to 50V and continuous output currents up to 500mA per channel, making it suitable for various applications.
3. Integrated Flyback Diodes: Each output is equipped with a flyback diode, providing protection against voltage spikes when driving inductive loads.
4. Common Emitter Configuration: The inputs are TTL-compatible, allowing for easy interfacing with microcontrollers and logic devices.
5. Thermal and Short-Circuit Protection: The ULN2803A features built-in thermal protection and can withstand short-circuit conditions, enhancing reliability.
6. Compact Package: Available in 18-pin DIP and surface-mount packages, it is space-efficient for circuit designs.
These attributes make the ULN2803A a versatile choice in automation, robotics, and control systems.

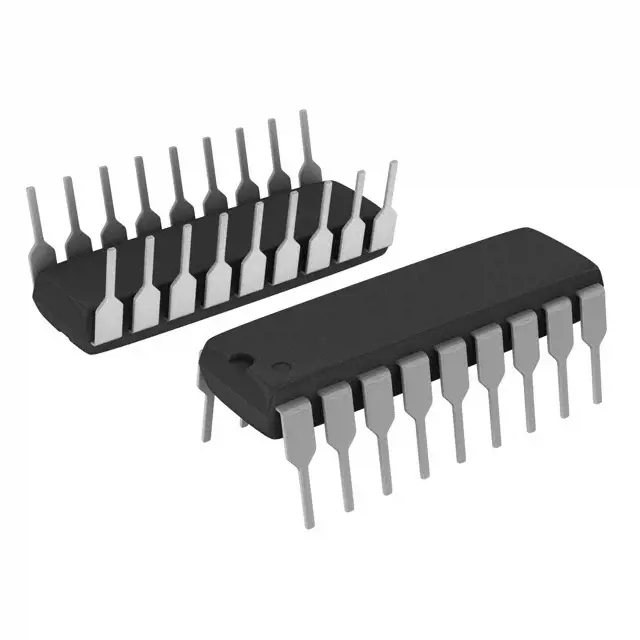

The ULN2803A is typically available in a 18-pin DIP (Dual In-line Package) and a 20-pin SOIC (Small Outline Integrated Circuit) package. These packages facilitate easy integration into various electronic circuits.

The ULN2803A is manufactured by several companies, with Texas Instruments being one of the most well-known manufacturers of this integrated circuit. Texas Instruments is a prominent technology company that designs and produces semiconductors and various integrated circuits, specializing in analog electronics, embedded processors, and digital signal processors. Founded in 1930, the company has a diverse portfolio that serves industries such as automotive, industrial, communications, and personal electronics. Texas Instruments is recognized for its innovation in electronic components and its commitment to providing solutions for modern electronic applications. Other manufacturers of the ULN2803A include ON Semiconductor and NXP Semiconductors, both of which are also significant players in the semiconductor industry, focusing on various electronic components and systems.

The ULN2803A is commonly used in various applications including driving relays, motors, and lamps due to its ability to handle high-current outputs. It is also used in interfacing with microcontrollers for controlling multiple loads, such as LED displays, industrial automation, and robotics. Additionally, it serves in signal amplification and switching applications where higher voltage and current control is needed. Its integrated protection diodes make it suitable for inductive load driving.

The ULN2803A is a high-voltage, high-current Darlington transistor array. Equivalent products include:
1. ULN2003A - Similar functionality but with a lower output current.
2. ULN2804A - Four-channel version of the ULN2803A.
3. MC34063 - A versatile DC-DC converter.
4. TLC5940 - A more advanced LED driver with control features.
Always check the specific requirements and characteristics to ensure compatibility for your application.
